Midwest Optical : BP365
Description
Ultra-Violet Bandpass Filters for UV Imaging, BP365
UV Bandpass Filters pass selective ultra-violet wavelength ranges. It is always necessary to use UV pass/visible block filters in applications that involve imaging at UV wavelengths.
Available Models:
| BP365-25.4 |
| BP365-13.25 |
| BP365-22.5 |
| BP365-25.5 |
| BP365-27 |
| BP365-30.5 |
| BP365-34 |
| BP365-35.5 |
| BP365-37 |
| BP365-37.5 |
| BP365-40.5 |
| BP365-43 |
| BP365-46 |
| BP365-49 |
| BP365-52 |
| BP365-55 |
| BP365-58 |
| BP365-62 |
| BP365-67 |
| BP365-72 |
| BP365-77 |
| BP365-82 |
| BP365-86 |
| BP365-95 |
| BP365-105 |
Specifications
Full Width Half Max (50%) Points: 315-400nm
90% min. peak transmission
40/20 surface quality scratch & dig
Mount Options: T=Standard Threaded Lens Mount; S=Slip-On Mount; C=C/CS-Camera Mount (M25.4); F=Filter
Resources & Documents

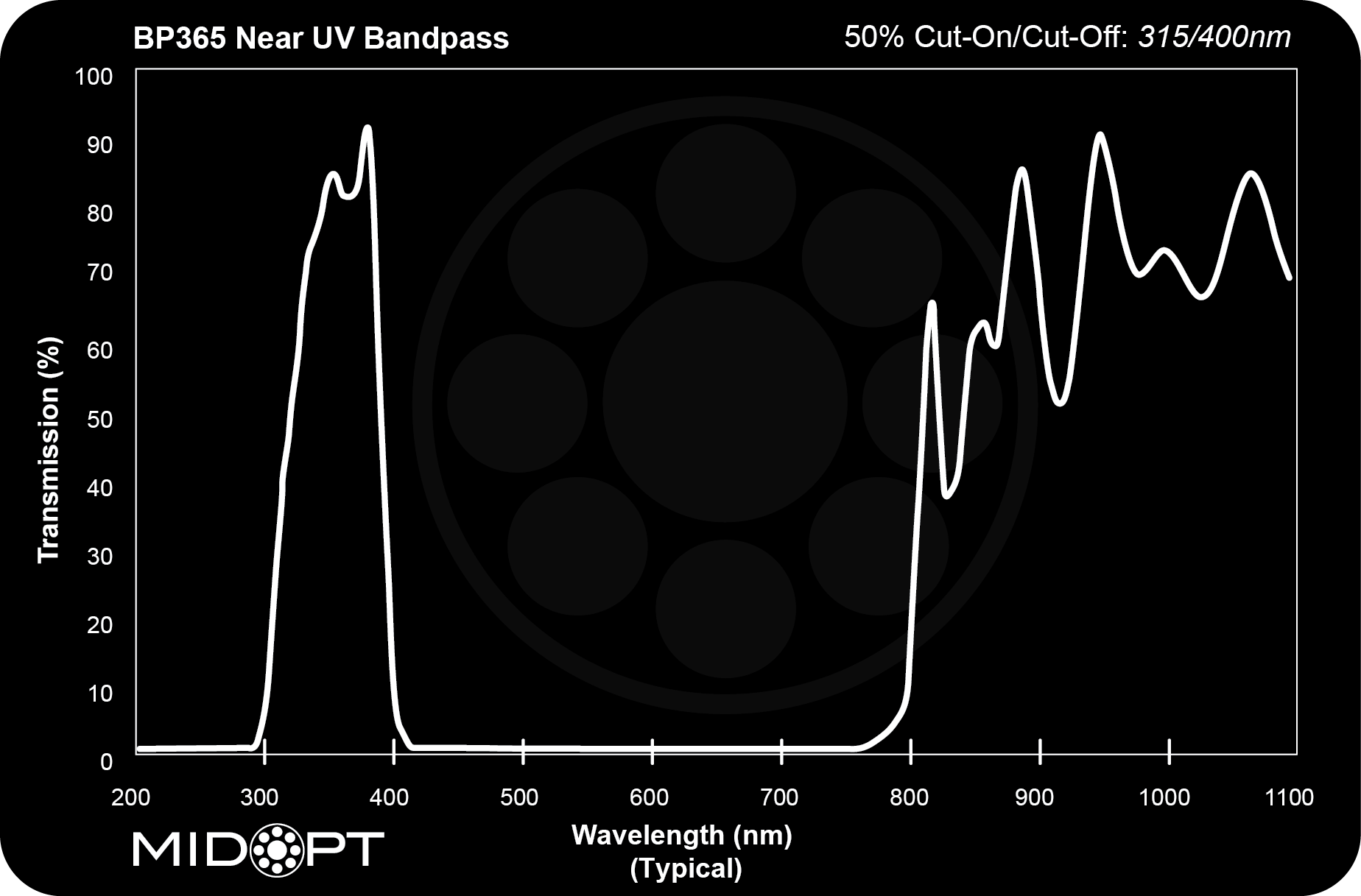

| midopt_bp365_curve.png | Curve Graph |
